96V - Energy Storage Solutions
96V

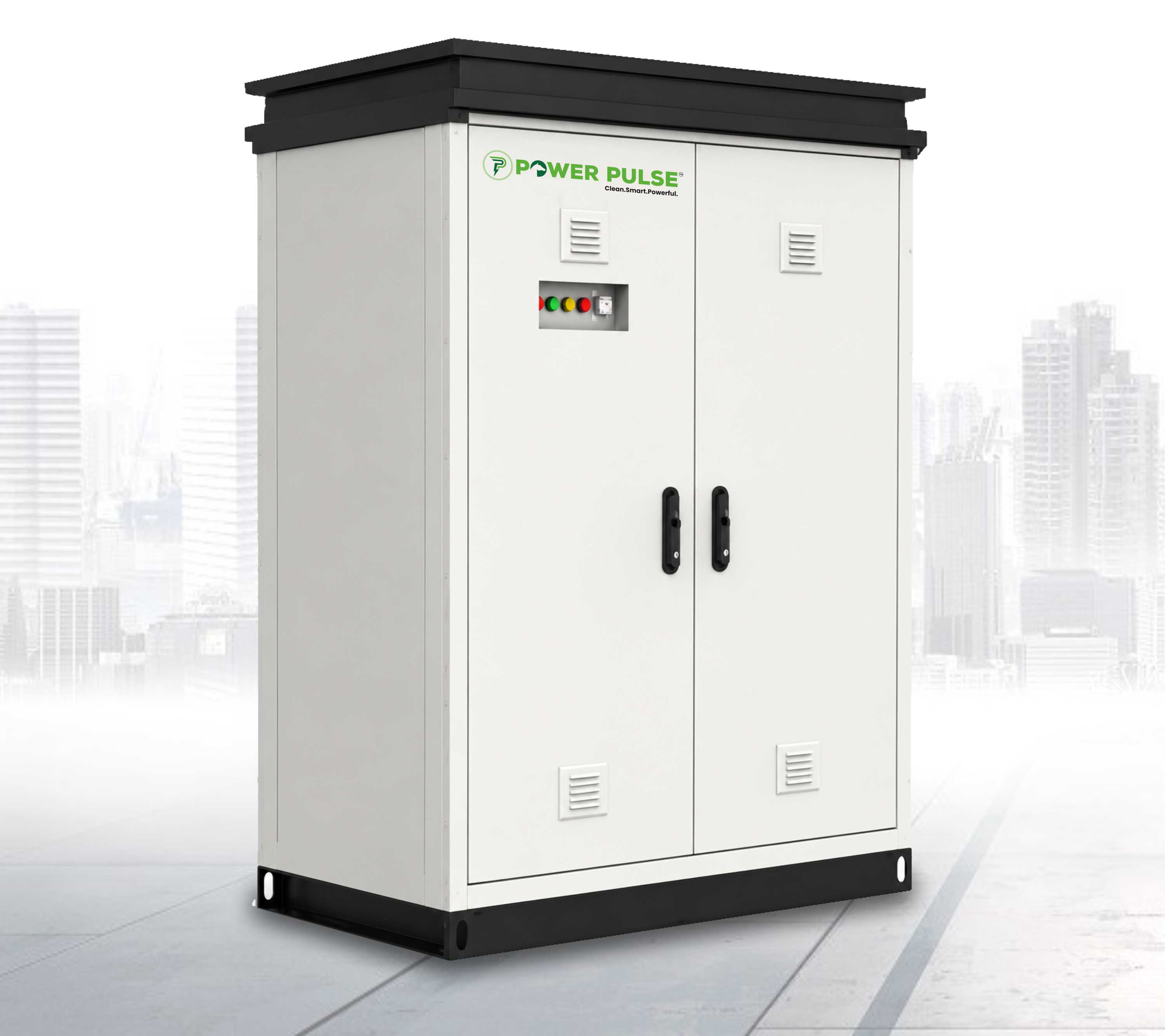

PowerPulse 96V Energy Storage System uses a 30S LiFePO4 prismatic configuration, offering 10-100kWh+ capacity for small commercial and large residential applications. Lower cabling costs and higher efficiency.
Key Features & Benefits
- Modular & Scalable Architecture
- Grid-Tied & Off-Grid Compatible
- Peak Shaving & Load Management
- Cloud-Based Monitoring & Analytics
- UL & IEC Certified Safety Standards
- 15+ Year Expected Service Life
Product Description
The PowerPulse 96V Energy Storage System is a 30S LiFePO4 prismatic solution designed for small commercial and large residential applications, with a scalable capacity range of 10kWh to 100kWh+. By stepping up from 48V, the system significantly reduces current draw, enabling thinner cabling, lower BOS costs, and improved overall system efficiency. Built with an industrial-grade BMS and modular rack design, the 96V system supports grid-tied and off-grid operation, peak shaving, and seamless integration with solar, wind, and utility power sources.Technical Specifications
| Parameter | Specification |
|---|---|
| System Voltage | 96V |
| Capacity | 10kWh - 100kWh+ |
| Cell Chemistry | LiFePO4 Prismatic (30S Configuration) |
| Cycle Life | 6000+ Cycles @ 80% DOD |
| Round-Trip Efficiency | >96% |
| Charge Voltage | 109.5V |
| Discharge Cut-off | 80.0V |
| Operating Temperature | -10°C to 55°C |
| Communication | Modbus / CAN / Ethernet |
| Safety | UL9540A, IEC 62619 |
| Mounting | Standard Rack/Cabinet |
Additional Information
- Scalable modular design - start at 10kWh, expand as needed
- Peak shaving and demand charge management for commercial facilities
- Seamless integration with solar, wind, and grid power sources
- Remote monitoring and diagnostics via cloud platform
- Lower current vs 48V systems reduces cabling and BOS costs
- Turnkey EPC services including design, installation, and commissioning
