12.8V 24Ah - Solar Lighting Application
12.8V 24AH
Compact 307.2Wh solar lighting battery ideal for street lights, parking lot lights, and billboard lighting. 4S LiFePO4 chemistry with IP65 protection and 2000+ cycle life.
Key Features & Benefits
- LiFePO4 Chemistry for Superior Safety
- 307.2Wh Usable Energy Capacity
- IP65 Weatherproof Rating
- Compact & Lightweight (~2.4kg)
- 2000+ Cycle Life
- Wide Operating Temperature: -20°C to 60°C
- Built-in BMS Protection
- Zero Maintenance Design
- Silent Operation
Product Description

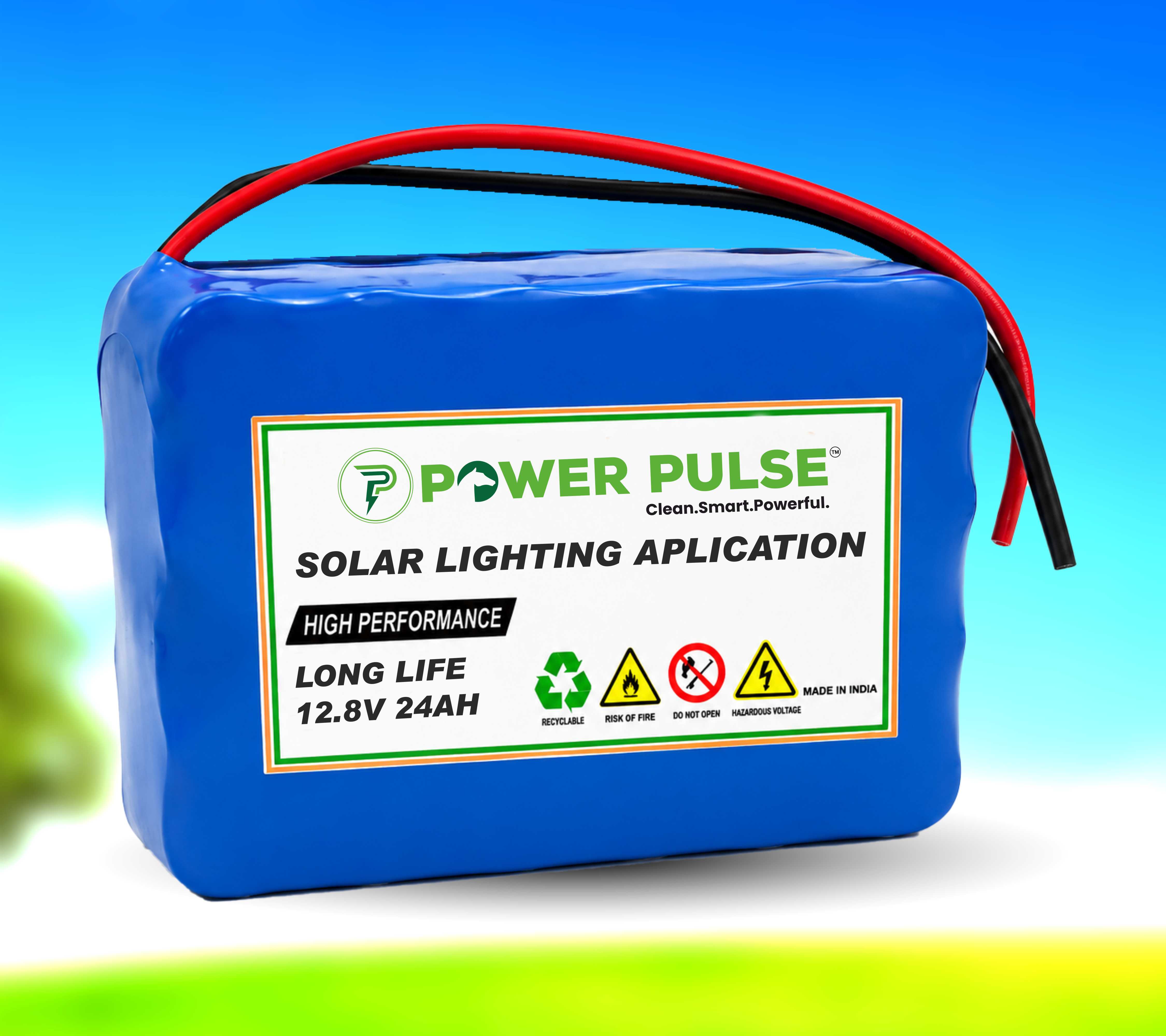

The PowerPulse 12.8V 24Ah Solar Lighting Battery is a compact and reliable 307.2Wh LiFePO4 battery engineered for solar street lighting, parking lot lights, and billboard lighting systems. It delivers consistent, clean energy storage for outdoor lighting applications demanding durability and performance. Built with a 4S LiFePO4 configuration and IP65 weatherproof enclosure, this battery is designed to withstand harsh outdoor environments. With a wide operating temperature range of -20°C to 60°C, it remains dependable through extreme seasonal conditions, making it ideal for solar street lights rated 30–50W.Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 12.8V |
| Capacity | 24Ah (307.2Wh) |
| Cell Chemistry | LiFePO4 (4S Configuration) |
| Cycle Life | 2000+ Cycles |
| Charge Voltage | 14.6V |
| Discharge Cut-off | 10.0V |
| Max Discharge Current | 24A (1C) |
| Operating Temperature | -20°C to 60°C |
| Weight | ~2.4 kg |
| Dimensions | ~200 × 75 × 110 mm |
| Protection Rating | IP65 |
Additional Information
- Suitable for solar street lights rated 30–50W
- Compatible with 12V solar charge controllers
- IP65 weatherproof enclosure for outdoor installation
- Wide temperature range: -20°C to 60°C
- Zero maintenance design
- Silent operation
- Built-in BMS protection
- Expandable in parallel for higher capacity
